VERSA™ 10 – Compact Automated Liquid Handling Workstation

PRODUCT INFORMATION


    Scale up your experiments without scaling up your budget or taking up valuable lab space! The VERSA™ 10 is a compact automated liquid handling machine that provides a versatile 6-position deck all in a footprint under 3 ft2. Utilizing air displacement pipetting technology, the system can handle volumes as low as 1µL. The 8-channel head with single-channel functionality provides flexibility to prepare anywhere between 1 to 96 samples.

    VERSA™ 10 with HEPA/UV/LED Hood

    VERSA 10 with hood– Compact Automated Liquid Handling Workstation. This robotic liquid handler can conduce qPCR and PCR Set-up Sequencing Reaction Set-up Nucleic Acid Purification Microarray Spotting Immuno and Biochemical Assays Cell-Based Assays Environmental Sample Preparation General Liquid Handling – dilution, plate reformatting, and aliquoting. For 96 well plates and 384 well plates.
    • Compact – Fit on benchtop and in biosafety cabinets
    • 4 or 8 channels with single channel function
    • Minimal MaintenanceNo priming of pump
    • Flexible 6-positioned modular deck tailoring to your needs
    • Open System – Keep your protocols, kits and labware
    • Contamination-Free with optional HEPA/UV/LED enclosure
    • Intuitive software pre-programmed with your protocols
    • On-site training and installation

    Volume Range

    1µL – 1000µL

    Precision

    CV <5% at 1µL

    Deck Capacity

    6

    Pipetting Head

    4 or 8 Channels

    Single Channel Pipetting Function

    Yes

    Accessory Option

    HEPA/UV Enclosure

    Dimensions (W x D x H)

    45 x 57 x 54 cm

    Weight

    31 kg

    VERSA™ 10 Sample Deck Configurations

    Nucleic Acid Preparation

    PCR Setup

    Sample Pipetting Heads, Modules & Accessories

    Modules & Accessories, 8-channel pipette head, equipped to your liquid handler for lab automation. For 96 well plates and 384 well plates.

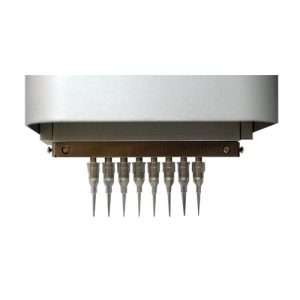

    8 Channel Syringe Pipettor

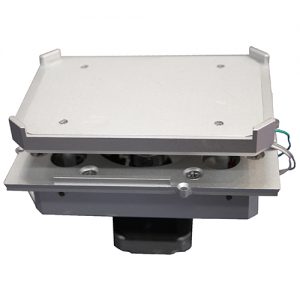

    Shaker-Heater

    Heater-Shaker

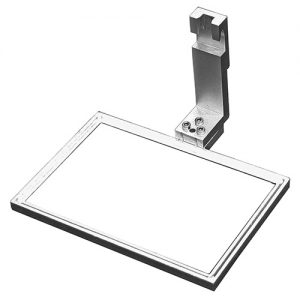

    Plate Transporter

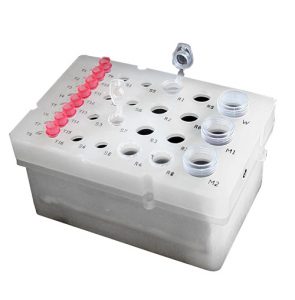

    Reagent Block Cooler

    Can VERSA™ 10 function as a single channel pipette without having to change its head?

    The VERSA™ 10 compact automated liquid handling machine can be utilized as a multichannel system in addition to a single-channel without you having to change the pipette head.

    Is cooling or heating of plates/samples available?

    The VERSA™ 10 automated liquid handler can be equipped with a heater-cooler plate, which can define a temperature anywhere between 4 to 90 degrees Celsius. In addition, a Heater-shaker is also available to vortex samples while incubating samples anywhere between RT to 90 degrees Celsius.

    Is a HEPA filtered hood available?

    You can choose to have either a safety bar, safety hood or HEPA/UV hood for each VERSA™ series depending on your requirements. Each automated liquid handler is equipped with UV protective glass for a technician to monitor the process of automation.

    What volume ranges can the system handle?

    The system can handle anywhere from 1μL to 1000μL with the installation of a 1000μL syringe pump. However, a 250μL syringe pump is typically installed for conducting low volume assays such as PCR setup, Nucleic Acid Purification or NGS library normalization, guaranteeing a %CV of less than 5%.

    What measures are in place to prevent cross-contamination?

    Using disposable tips, each VERSA™ series can avoid sample cross-contamination. Along with the tip-touch function, our user-friendly software VERSAware allows you to control the air gap to eliminate sample cross-contamination when using our automated liquid handling systems.

    Can a VERSA™ 10 sit inside of a biosafety cabinet?

    Yes, with its small footprint, the VERSA™ 10 compact automated liquid handling machine is small enough to be installed inside a biosafety cabinet if necessary.
